Onduleur On-Grid INVT 5KW Triphasé
Onduleur On-Grid INVT 5KW Triphasé - Image 2
Onduleur On-Grid INVT 5KW Triphasé - Image 3
Onduleur On-Grid INVT 5KW Triphasé - Image 4
Onduleur On-Grid INVT 5KW Triphasé - Image 5
Onduleur On-Grid INVT 5KW Triphasé - Image 6

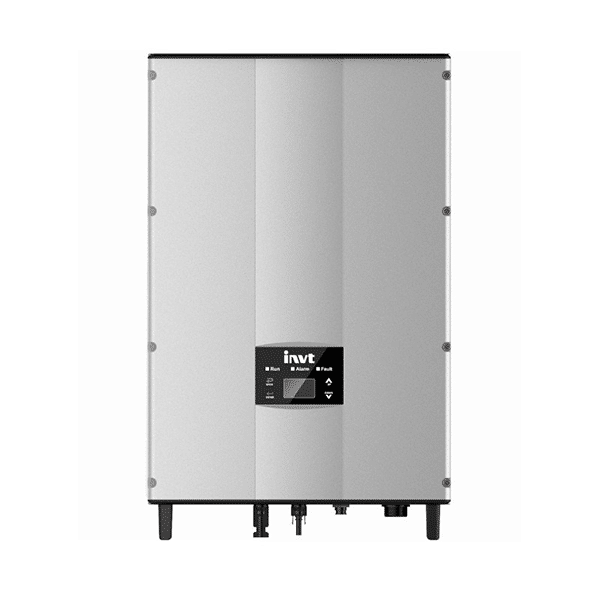

On-Grid INVT 5KW Three-Phase Inverter

BG5KTR

The typical grid inverter iMars BG5KTR  INVT  part of the BG series, a new generation of inverters three-phase photovoltaics which was developed by INVT for residential and small business users. It uses advanced three-level T-type topology and SVPWM (space vector pulse width modulation) technique combined with small volume and light weight, easy installation and maintenance, high cost, providing a more flexible system for domestic and commercial distributed photovoltaic power generation system solutions.

- Adaptable intelligent network to meet the requirements of different accesses to the electricity network

Catégories: ,

Description

5 kW three-phase grid inverter INVT BG5KTR

– Efficient: German core technology, ultra-wide voltage range, super low starting voltage and higher conversion efficiency (maximum efficiency up to 97.3%); and multiple MPPTs, adapt to a complex roof environment and increase energy production.

– Reliable: aluminum housing, natural heat dissipation, IP65 protection grade, internationally renowned brand components to ensure stable operation of the inverter, product liability insurance and liability insurance for errors or omissions are covered by the international company AIG property insurance.

– Intelligence: adaptive intelligent network, variety of monitoring modes: APP (one-button logging), large screen data monitoring center, cloud monitoring platform, supports RS485, GPRS, WiFi, Ethernet (Ethernet)

-Simple: Home audio-visual design, easy to use, small in size, light in weight and easy to install by one person.

Additional information

Brand

INVT
Series

iMars BG
Model

BG5KTR
Input (DC)

.
Maximum DC Power

5.7 kW
Nominal DC Voltage

580 V
MPP(T) Voltage Range

200~800 V
Maximum DC current

. A
Output (AC)

.
Rated AC power

5 kW
 Rated output current (A)

8 A
Maximum efficiency

98,1 %
General data:

.
Protection Level

IP65
Weight

20 kg
Dimensions

530x360x150 mm

Onduleur On-Grid INVT 5KW TriphaséDATA SHEET
