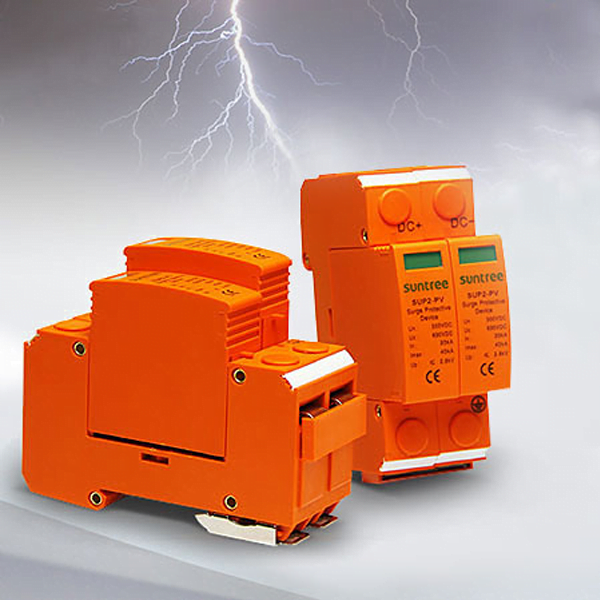

SUNTREE 2P 500V Surge Protector
Application
SSPD surge protection device, protects against lightning surges in solar system (photovoltaic power system). These units must be installed in parallel on the DC networks to be protected and provide protection in common and different modes. Its installation location is recommended at both ends of the DC power line (solar panel side and inverter/converter side), especially if the line routing is external and long.
High energy MOVs equipped with specific thermal disconnectors and associated failure indicators.
Characteristics
ELECTRICAL TECHNICAL REFERENCE
| product model | SUP2H-PV | |
| Max. continuous operating voltage (Uc) | 500 VCC | |
| Protection level (In)Up | 2,8kV | |
| Max. discharge current (Imax)(8/20us) | 40KA | |
| Operating temperature | -40 ℃ ~ + 70 ℃ | |
| Relative humidity | ≤95%(25℃) | |
| Installation mode | Standard 35mm guide rail | |
| Indicator | Normal: green Fail: Red | |
| Protection level | IP20 | |
| Number of poles | 2P | |
| Leakage 0.75u lmA(uA) | ≤20 | |
The normal ambient air temperature range should not be higher than +40°C or lower than -25°C, with relative humidity not exceeding 95%.
The altitude of the installation site should not exceed 2000 m
Pollution class 3
Where there is no risk of explosion and the environment is free of conductive gases and dust sufficient to corrode metals and destroy insulation. Wiring resistance
Grounded copper busbar
